| Panel Down Lights | ||||||||
|---|---|---|---|---|---|---|---|---|
| Panel Lights Down Lights | Cat Reference | Rated Wattage | Color Temp. | Lumen | Dimension | Technical Specifications | ||
| Size | Height | Cut Size | ||||||

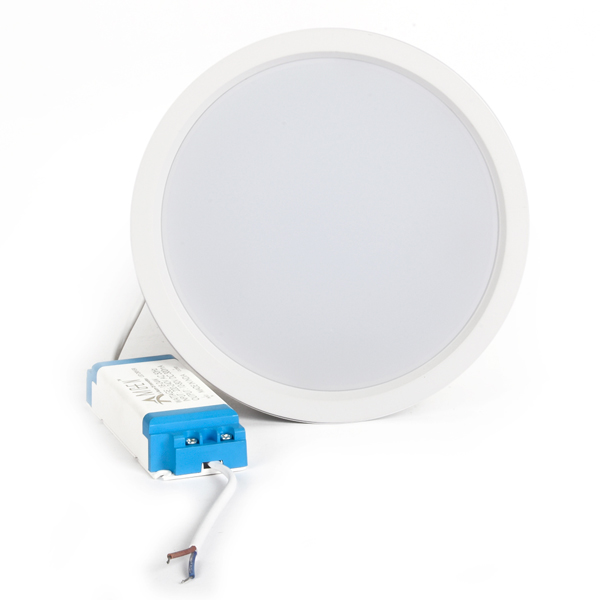

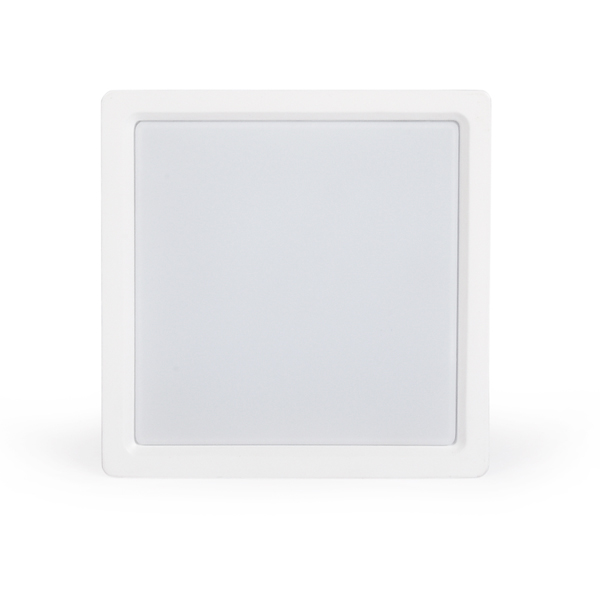

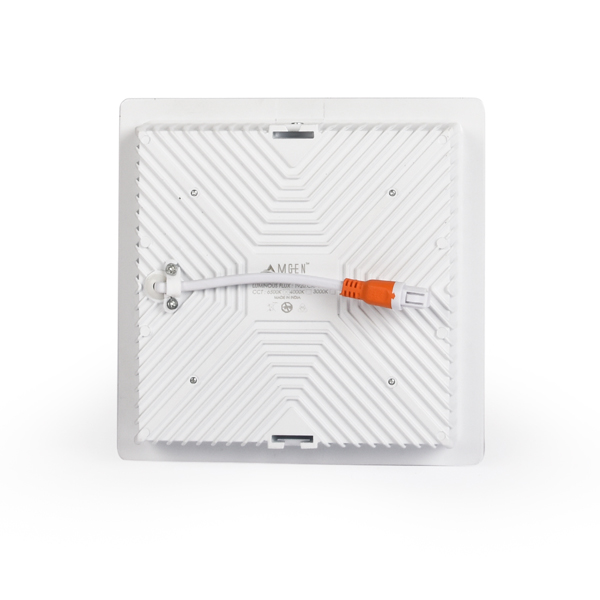

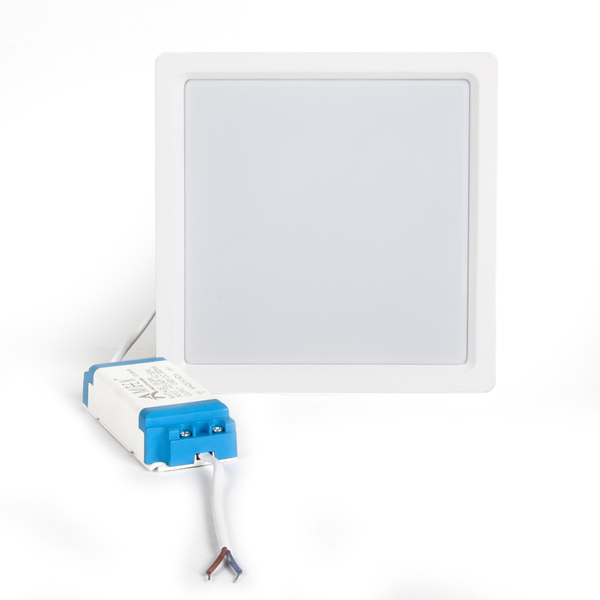

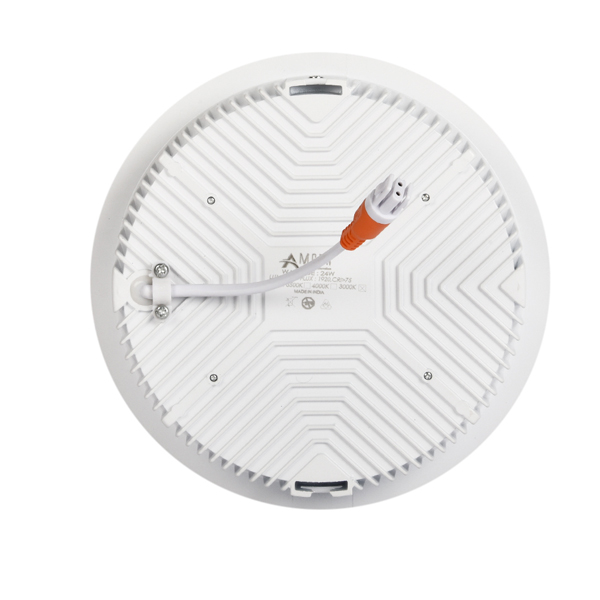

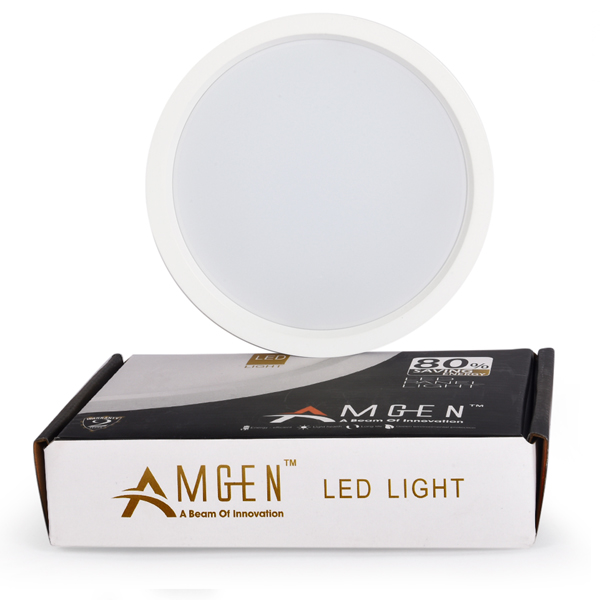

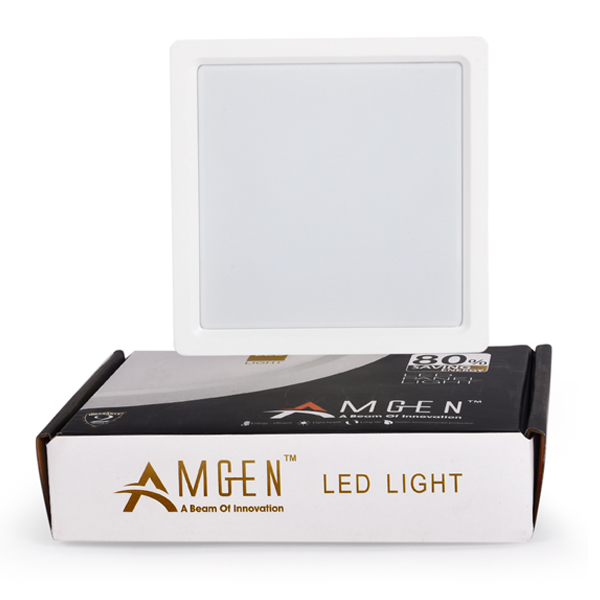

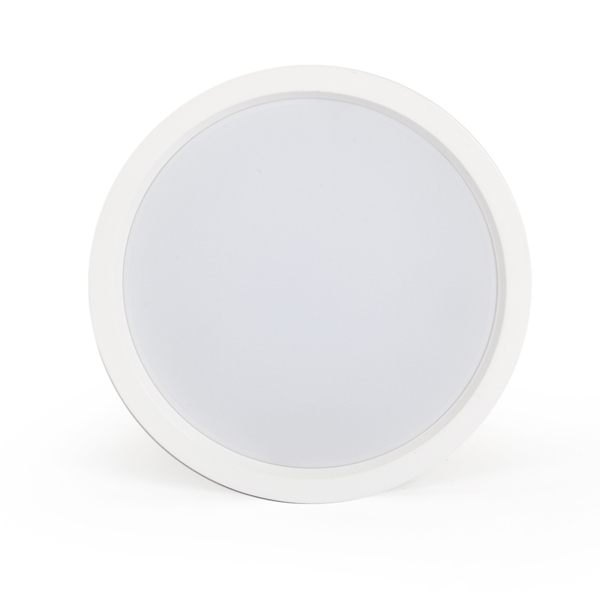

| AMGEN LED make BACK LITE PANEL LIGHTS, Suitable for recessed mounting application round shape / square shape |
ALP05-DLFQ-BL6-4 | 6W | 3000K-6500K | 480 | 110X110 | 35 | 100X100 | PF>0.9 MALT : Alluminium Die Casting with PC Diffuser IP Level : IP 20 Colour : CW, NW & WW VOLTAGE: 110-240V |
| ALP05-DLFQ-BL12-6 | 12W | 3000K-6500K | 960 | 165X165 | 35 | 135x135 | ||
| ALP05-DLFQ-BL18-6 | 18W | 3000K-6500K | 1440 | 180X180 | 35 | 160x160 | ||
| ALP05-DLRD-BL6-4 | 6W | 3000K-6500K | 600 | 120 | 46 | 108 | ||
| ALP05-DLRD-BL12-6 | 12W | 3000K-6500K | 1200 | 182 | 51 | 158 | ||
| ALP05-DLRD-BL18-6 | 12W | 3000K-6500K | 1800 | 128 | 51 | 210 | ||
