| Slim Panel Down Lights | ||||||||
|---|---|---|---|---|---|---|---|---|
| Slim Panel Lights Down Lights | Cat Reference | Rated Wattage | Color Temp. | Lumen | Dimension | Technical Specifications | ||
| Size | Height | Cut Size | ||||||
| AMGEN LED

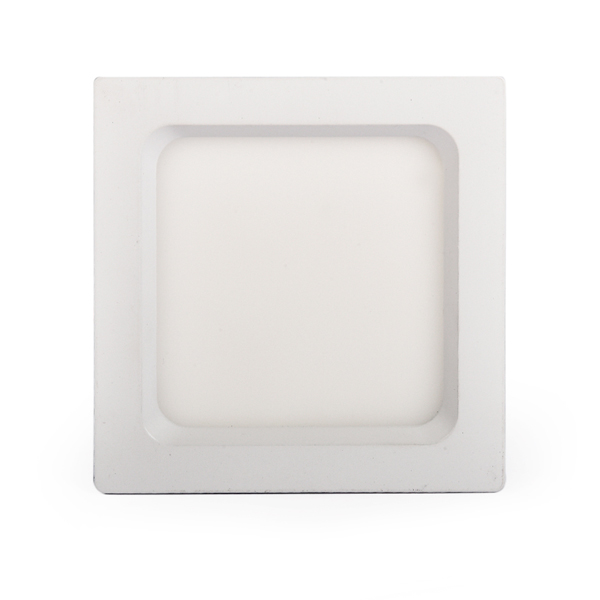

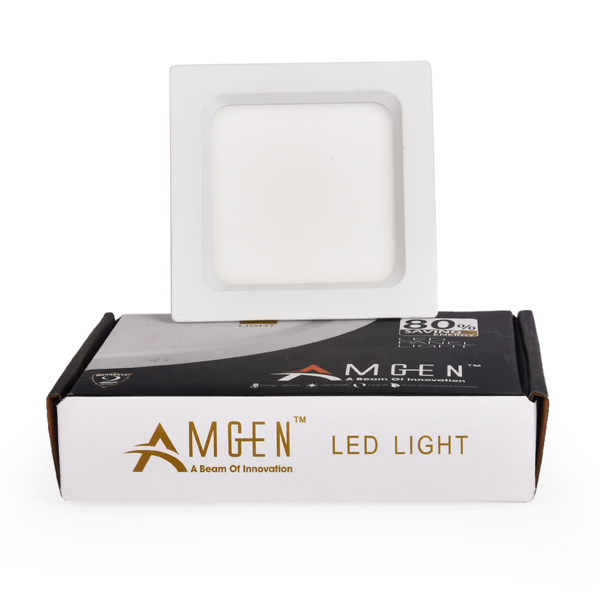

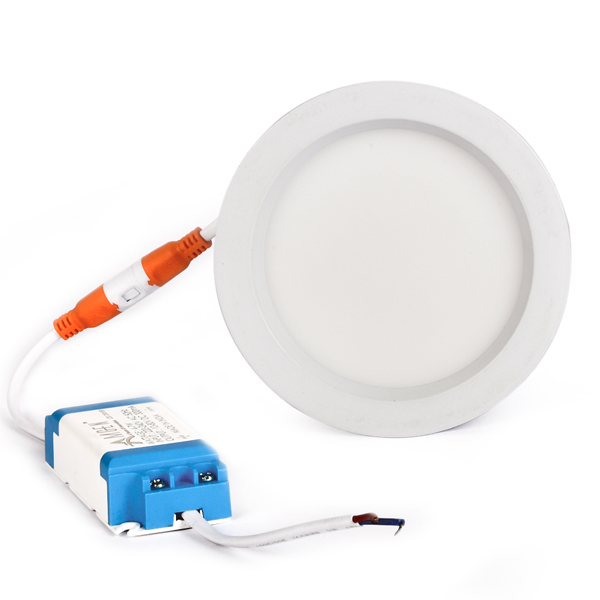

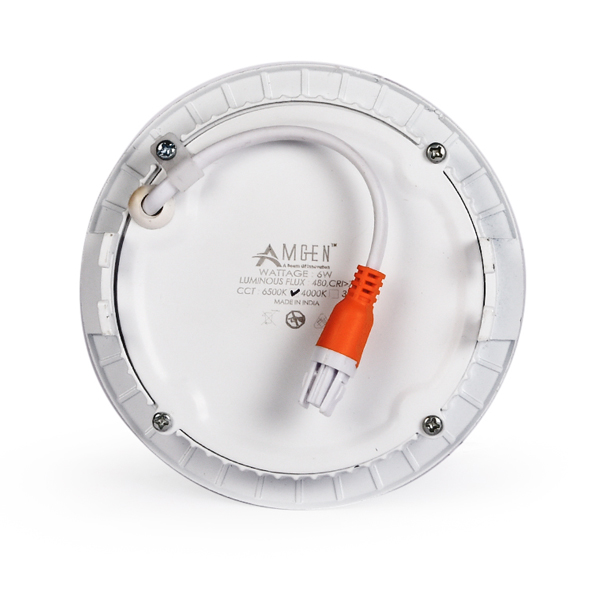

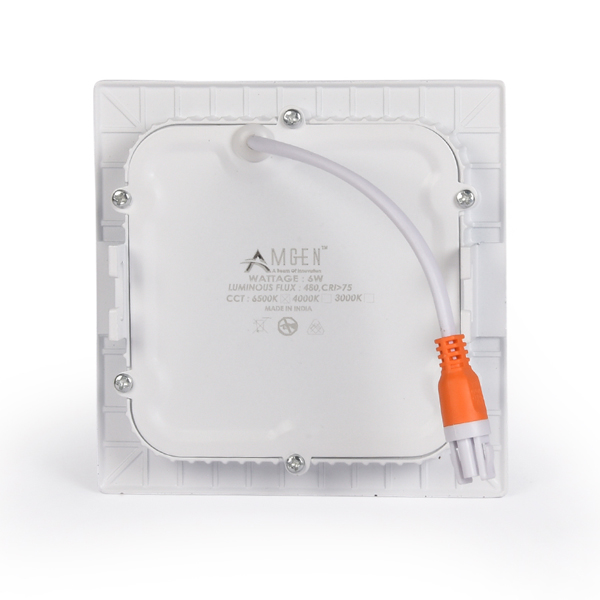

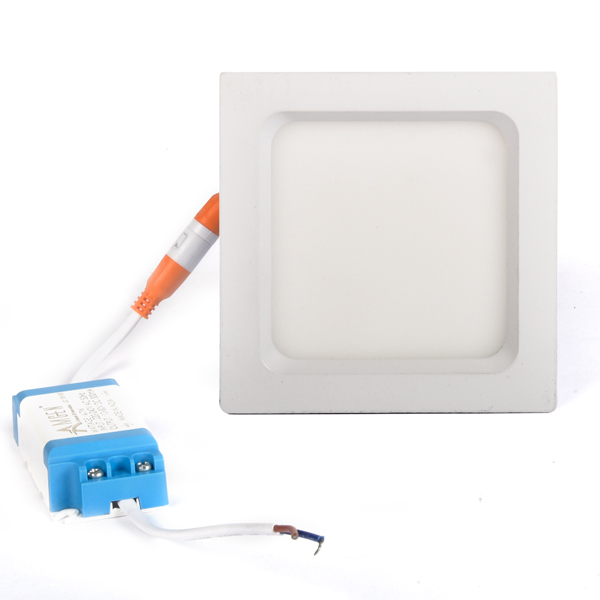

make EDGE SLIM PANEL LIGHTS, Suitable for recessed mounting application round shape / square shape |
ALP05-DLSQ-EL6-4 | 6W | 3000K-6500K | 600 | 120X120 | 25 | 100X100 | PF>0.9 MALT : Alluminium Die Casting with PC Diffuser IP Level : IP 20 Colour : CW, NW & WW VOLTAGE: 200-240V |
| ALP05-DLSQ-EL12-6 | 12W | 3000K-6500K | 1200 | 175X175 | 25 | 155x155 | ||
| ALP05-DLSQ-EL18-6 | 18W | 3000K-6500K | 1800 | 225X225 | 25 | 215x215 | ||
| ALP05-DLSQ-EL24-8 | 24/28W | 3000K-6500K | 2800 | 300X300 | 25 | 280X280 | ||
| ALP05-DLRD-EL6-4 | 6W | 3000K-6500K | 510 | 120 | 28 | 108 | ||
| ALP05-DLRD-EL12-6 | 12W | 3000K-6500K | 1020 | 182 | 30 | 158 | ||
| ALP05-DLRD-EL18-6 | 18W | 3000K-6500K | 1530 | 228 | 30 | 210 | ||
| ALP05-DLRD-EL24-8 | 24W | 3000K-6500K | 2380 | 228 | 35 | 220 | ||
